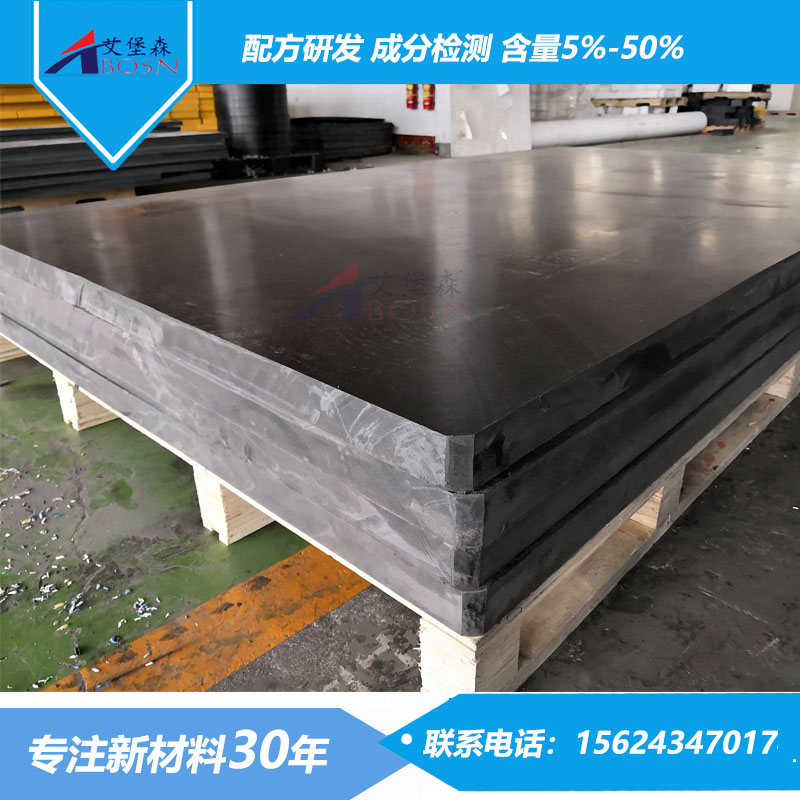

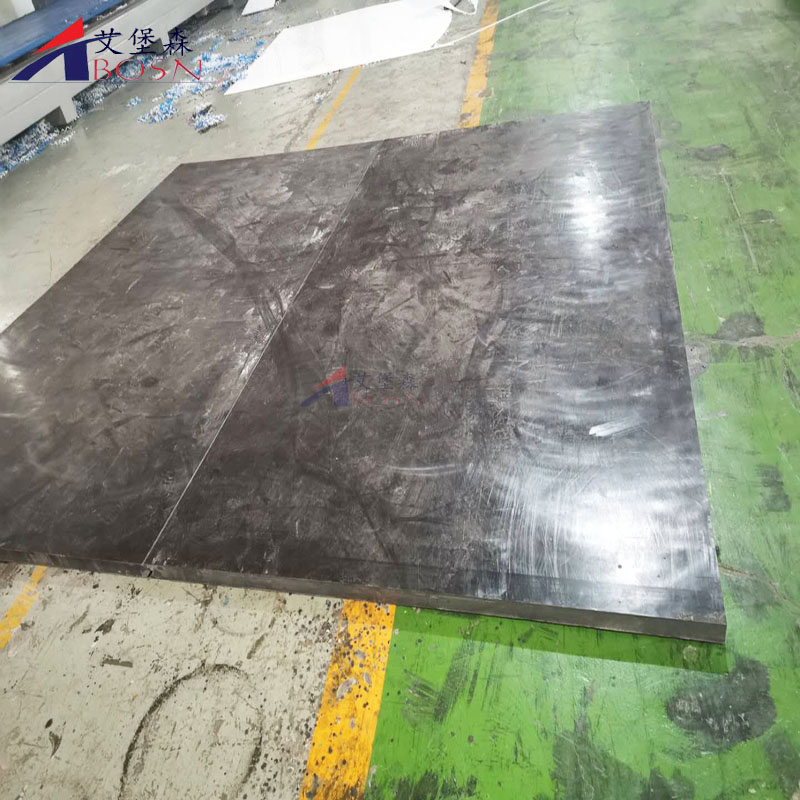

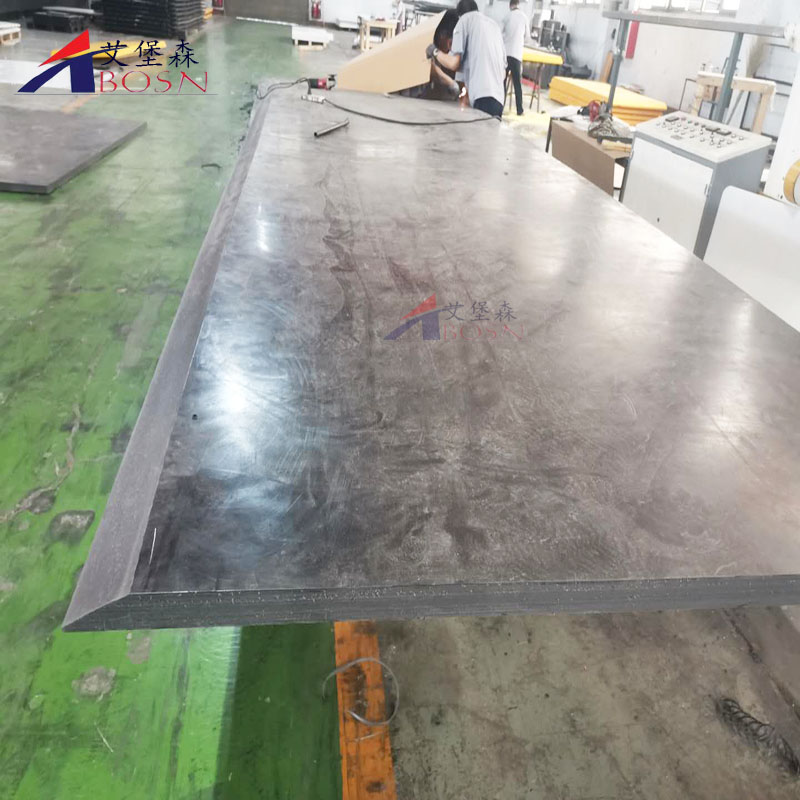

含硼聚乙烯板中子防护门,含硼聚乙烯墙壁板
山东艾堡森新材料有限公司按客户要求定制碳化硼聚乙烯板,含硼聚乙烯板,铅硼聚乙烯板等并且可按需求添加助剂,可免费设计并提供方案!详情请来电咨询!
我公司目前生产的含硼聚乙烯板中硼元素可屏蔽中子辐射 ,氢元素可以使中子衰减,助于硼更易于吸收热能化中子。主要用于工业三废、石油屏蔽盖、医用防护门以军用防护墙和军工设备配件、核燃料屏蔽材料以及中科研究院等领域。可定制添加碳化硼、硼砂、三氧化二硼以及铅粉,含量5%-40%均可定制生产
The boron element in the boron containing polyethylene sheet produced by our company can shield the neutron radiation, and the hydrogen element can attenuate the neutron, which helps boron absorb the thermal neutron more easily. It is mainly used in industrial waste, oil shield cover, medical protective door, military protective wall and accessories of military equipment, nuclear fuel shielding material and Chinese Academy of Sciences and other fields. Can be customized, add boron carbide, borax, boron trioxide and lead powder, content of 5% - 40% can be customized production

含硼聚乙烯板具有良好的工程性能、尺寸稳定性好,具有较满意的耐γ辐射性能,使用温度为80~100℃,**热中子、快中子和γ辐射性能明显优于聚乙烯,研究表明含硼防辐射聚乙烯板能够有效的防止核辐射及中子辐射给个人及社会造成的危害。
含碳化硼量:10%(以重量计)
密度:≥1.028g/cm3
密度差:≤0.01g/cm3
热变形温度(载荷ρ=0.46Mρa):72℃
线膨胀系数:8.933×10-51/℃
耐热温度:126℃(DTA测量值)
抗热强度:≈24MPa
冲击强度(缺口):≈19KJ/m2


产品材质:聚乙烯PE和碳化硼
生产工艺:高温高压 后期CNC数控加工
产品性能:防护中子辐射
产品规格:含硼量4%-40%
产品颜色:黑色
包装:出口托盘
